Wednesday, November 11, 2015

Automate Cisco ssh connections with plink in Windows

Automate Cisco ssh connections with plink in Windows



Plink basics:
Plink is part of Putty and available at
http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html (don't
download it from other places, this is the official location). It is
the command line interface for Putty and can be used in scripts. Be
sure to download the installer or the zip with all the files as Putty
is a great tool if you ever SSH, SCP or connect to network hardware in
general. The "latest development snapshot" is what I used for this
post, as things might change in the future and bugs be introduced or
other issues that would alter the information in this post -- please
use the stable release if you are timid.
Plink.exe is simple to use, but I have had problems with it and Linux
machines ("server refused keyboard-interactive authentication" issue).
That is why this post is all about Cisco, I have not had problems
there. An example to connect to a Cisco device is: c:\putty\plink.exe
cisco@192.168.0.1 -pw P@55W0rD! where the user name is "cisco" with a
super secure password of "P@55W0rD!" connecting to a Cisco device with
an ip of 192.168.0.1. This command should get you a ">" prompt on the
device.
Scripting:
Wait! How to I script this? How do I get enable access? To do much
else you need to make a command file.
A command file is just a text file with the list of commands you want
to run, in the order you need to run them. Here is an example
(command.txt):
enable
enablepassword
show clock
show mem
show cpu
exit
If I were to run: c:\putty\plink.exe cisco@192.168.0.1 -pw P@55W0rD!
-m command.txt then I would get the memory and cpu statistics
displayed on the screen. If I were to redirect the output to a text
file with a "double waka" (>>), like this: c:\putty\plink.exe
cisco@192.168.0.1 -pw P@55W0rD! -m command.txt >>
router_utilization.txt then I could have a text file with the date
and time, memory and cpu statistics. If this command were in a batch
file that was scheduled to run periodically then it could keep a
running log of the device.
For extra credit, how might we get this script to run and check stats
on different devices? If we make a separate file called "devices.txt"
that contained the IP addresses of the devices we need to monitor like
this:
192.168.0.1
192.168.10.22
192.168.10.24
Then we could run this command (provided that the account name,
password and enable password were the same on each device):
for /f %i in (devices.txt) do c:\putty\plink.exe cisco@%i -pw
P@55W0rD! -m command.txt >> device_utilization.txt
(if you put this in a batch file, be sure to use "%%i" and not the
"%i" as the batch will strip the single percents)
Enjoy!

So with the command:

for /f %i in (devices.txt) do c:\putty\plink.exe cisco@%i -pw
P@55W0rD! -m command.txt >> device_utilization.txt

the "for /f" command loops through each line of the "devices.txt" file and assigns each line to the variable %i. So, if devices.txt had two lines, the first only having "10.10.1.25" and the second line only as "10.10.1.27"... the the command above would run twice. The first line would be:

c:\putty\plink.exe cisco@10.10.1.25 -pw P@55W0rD! -m command.txt >> device_utilization.txt

and the second would be

c:\putty\plink.exe cisco@10.10.1.27 -pw P@55W0rD! -m command.txt >> device_utilization.txt

The problem a lot of people have is that Cisco is not consistent in how the commands are interpreted as they are passed by plink with the "-m" option. Routers, it would seem, need to have Unix style line formats that end with the invisible LF character (line feed). ASA firewalls can apparently use DOS formatted text files with CR+LF (carriage return+line feed). I can't be sure about switches. So your mileage may vary as to how the command line operates for a given device. I'd be curious if a normal "made in notepad" txt file for commands would work on switches.

I regret not getting back into this an testing each option. There is only so much router/firewall/switch configuration a web developer gets into.


This works for me using only powershell and plink and scripting to a cisco MDS switch:
PS V:\> $script=@()
PS V:\> $script+="terminal length 0"
PS V:\> $script+="show running-config"
PS V:\> $script+="exit"
PS V:\> $script
terminal length 0
show running-config
exit
PS V:\> [string]::Join( "`n", $script) | V:\WindowsPowershell\Modules\powerEMC\plink.exe admin@MDS01 -pw ****** -batch


Citrix StoreFront Basic Configuration

On This Page:

💡 = Recently Updated

Installation / Upgrade

StoreFront can be installed directly on your Delivery Controllers. When installing Delivery Controller, simply leave the box checked to install StoreFront. If you let Delivery Controller install StoreFront, it will create a default store named /Citrix/Store. See below to rename this store.
The XenApp/XenDesktop 7.6 ISO comes with StoreFront 2.6. If you installed StoreFront on your Delivery Controllers, then it is version 2.6 and you can upgrade it to 3.0.1.
Or you can install StoreFront 3.0.1 on separate servers. You can even install StoreFront on your existing Web Interface servers (make sure Web Interface is installed first).
Citrix Blog Post StoreFront 3.0 Scalability recommends StoreFront servers to be sized with 4 vCPU and 8 GB RAM.
After installation, NT SERVICE\CitrixConfigurationReplication and NT SERVICE\CitrixClusterService must remain in the Administrators group on both StoreFront servers or propagation will fail.

Install / Upgrade StoreFront 3.0.1

The XenApp/XenDesktop 7.6 ISO comes with StoreFront 2.6. If you installed StoreFront on your Delivery Controllers, then it is version 2.6 and you can upgrade it to 3.0.1. Or you can install StoreFront 3.0.1 on dedicated servers. Note: You can install Web Interface and StoreFront on the same servers. Make sure Web Interface is installed first.
  1. For new installs, there’s no need to install prerequisites (e.g. IIS) since the StoreFront installer will do it for you.
  2. If upgrading from older StoreFront, stop the World Wide Web Publishing Service.
  3. If upgrading from older StoreFront, stop all StoreFront services.
  4. Go to the downloaded Citrix StoreFront 3.0.1 and run CitrixStoreFront-x64.exe.
  5. In the License Agreement page, check the box next to I accept the terms and click Next.
  6. In the Review prerequisites page, click Next.
  7. In the Ready to install page, click Install.
  8. In the Successfully installed StoreFront page, click Finish.
  9. If this is a new install, skip to the next section (Initial Configuration).
  10. After upgrading, in StoreFront Console, go to Receiver for Web and Disable Classic Receiver Experience.
  11. Click Disable.
  12. Go to Stores and on the right, click Set Unified Experience as Default.
  13. Check the box next to Set the unified Receiver experience as the default for this storeand click OK.
  14. Go back to Receiver for Web and use the Configure Receiver Appearance and Manage Featured App Groups links to customize the webpage.

Initial Configuration

If this is a new install of StoreFront, do the following:
  1. In PowerShell, run Set-ExecutionPolicy Unrestricted.
  2. The management console should launch automatically. If not, launch Citrix StoreFrontfrom the Start Menu.
  3. In the middle, click Create a new deployment.
  4. In the Base URL page, if you installed an SSL certificate on the StoreFront server, then the Hostname should already be filled in. If SSL is not configured yet then you can leave it set to the server name and change it later once you setup SSL and load balancing. Click Next.
  5. In the Store Name page, enter a name for the store and click Next. The Store name entered here is part of the URL path. And users see this name in their local Receiver Accounts list.
  6. In the Delivery Controllers page, you can one set of Delivery Controllers per XenApp farm or XenDesktop site. Click Add.
  7. Change the Type to XenDesktop.
  8. Enter a descriptive name for the XenApp/XenDesktop 7.6 site/farm. This name does not need to match the actual site/farm name. And users don’t see this name.
  9. Add the two Controllers. Change the Transport Type to HTTP. Click OK. It’s also possible to set the Transport type to HTTPS if certificates are installed on your Delivery Controllers.
  10. If you have multiple XenDesktop sites/farms feel free to add them now. Or you can add older XenApp farms. Click Next when done.
  11. In the Remote Access page, select None and click Create. You can configure StoreFront to use NetScaler Gateway later.
  12. In the Created Successfully page, click Finish.

Second StoreFront Server

After installation of the second server, NT SERVICE\CitrixConfigurationReplication and NT SERVICE\CitrixClusterService must remain in the Administrators group on both StoreFront servers or propagation will fail.
  1. Install StoreFront 3.0.1 on the second server.
  2. On the 2nd server, create/import the SSL certificate and bind it to the Default Web Site.
  3. Login to the first StoreFront server. In the StoreFront management console, right-clickServer Group and click Add Server.
  4. Copy the Authorization code.
  5. Login to the second StoreFront server and launch the StoreFront Console. In the middle, clickJoin existing server group.
  6. In the Join Server Group page, enter the name of the first StoreFront server and enter the Authorization code copied earlier. Click Join.
  7. Then click OK.
  8. Go back to the first server. Click OK.

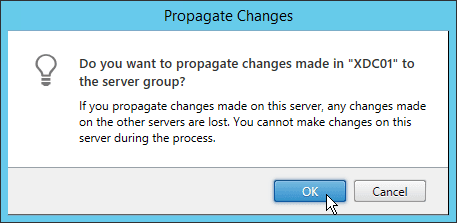

  9. All changes made on one StoreFront server must be propagated to the other StoreFront server. When changing StoreFront web.config files, change them on one StoreFront server use the StoreFront Console to Propagate Changes to the other StoreFront servers.

Store Name – Rename

When you install XenDesktop Delivery Controller, you are given the option of installing StoreFront on the same server. If you let the Delivery Controller installer also install StoreFront then the StoreFront on the Controller will have a default store name of /Citrix/Store. If you don’t like the default Store Name then you will need to remove the store and re-add it.
  1. In the StoreFront console, on the left click Stores.
  2. Highlight the store and on the bottom right click Remove Store.
  3. Click Remove.
  4. On the left, right-click Stores and click Create Store.
  5. In the Store Name page, enter a name. This name becomes part of the path (/Citrix/StoreName) and is displayed in Receiver. Click Next.
  6. In the Delivery Controllers page, add farms and click Next.
  7. In the Remote Access page, leave it set to None and click Create.
  8. In the Created Successfully page, click Finish.

HOSTS File

StoreFront 3.0 is smart enough to do a loopback connection to the local StoreFront server instead of sending traffic through the load balancer. For more information see No More Editing of Hosts File at Citrix Blog Post What’s New in StoreFront 3.0.
However, if you have StoreFront servers in multiple datacenters then you are probably using GSLB-enabled DNS names and StoreFront needs to resolve these names to VIPs in the local datacenter. Edit the HOSTS file (C:\Windows\System32\Drivers\Etc\HOSTS) on each StoreFront server with the following entries:
  • StoreFront Load Balancing FQDN (e.g. Citrix.corp.com) = Load Balancing VIP in the local datacenter.
  • NetScaler Gateway Callback FQDN (e.g. CitrixCB.corp.com) = NetScaler Gateway VIP in the local datacenter.

SSL Certificate

StoreFront requires SSL. You will save yourself much heartache if you install valid, trusted certificates. There are two options for StoreFront SSL:
  • SSL Offload: Use NetScaler to do SSL Offload and load balancing. In this scenario NetScaler does SSL encryption on the client side but uses clear-text HTTP on the StoreFront side and thus there is no need for certificates on the StoreFront servers. The SSL certificate on the NetScaler must match the DNS name that resolves to the load balancing VIP for StoreFront.
  • SSL End-to-end: In this scenario, NetScaler does encryption on the client-side but also re-encrypts before sending traffic to the StoreFront servers. This requires certificates on the StoreFront servers.
NetScaler usually does not verify server-side certificates so it doesn’t matter what name is in the cert that is installed on the StoreFront servers. However, some other load balancers do verify the cert and thus the cert on the StoreFront servers should match the FQDN of the StoreFront server.
If StoreFront is installed on your Delivery Controllers then both functions share the same IIS website and the same SSL certificate. If you want to enable SSL for the Delivery Controller (XML) connection, then the cert name on each server must match the FQDN of the Delivery Controller. One option is to create an SSL certificate with the following Subject Alternative Names: the StoreFront load balanced DNS name and each of the Delivery Controller FQDNs. Then import this one certificate on all StoreFront/Delivery Controllers servers and load balancers. Or a wildcard certificate could match all of these names.
In any case, be aware of the Subject Alternative Name requirements for email-based discovery in Citrix Receiver. Email discovery in Citrix Receiver requires the certificate to not only match the StoreFront load balanced DNS name but the certificate must also matchdiscoverReceiver.email.suffix. Usually the only option to match both names is with Subject Alternative Names. If you have multiple email suffixes then you will need multiple Subject Alternative Names, each beginning with discoverReceiver.email.suffix. If you configure Subject Alternative Names, don’t forget to add the load balanced name as one of the Subject Alternative Names.
When you view a Subject Alternative Name certificate, on the Details tab, click Subject Alternative Name to verify that all names are listed, including the DNS name that resolves to the load balancing VIP.
When attempting email discovery in Receiver, if the certificate does not matchdiscoverReceiver.email.suffix then users will see this message:
  1. The Certificates MMC snap-in can be used to create an internal certificate signed by a Microsoft Certificate Authority. The MMC method allows you to specify Subject Alternative Names.

  2. Or use the Server Certificates feature in IIS Manager to create or import a certificate.
  3. After the certificate has been created/imported on the StoreFront Server, in IIS Manager, right-click the Default Web Site and click Edit Bindings.
  4. Click Add.
  5. Change the Type to https and select the SSL certificate. Click OK and then click Close.
  6. Next step: change the Base URL inside StoreFront Console.

Delivery Controllers – SSL

If SSL certificates are installed on the Delivery Controller servers, you can configure the StoreFront Store to use SSL when communicating with the Delivery Controllers.
  1. In the StoreFront Console, on the left click Stores.
  2. On the bottom-right, click Manage Delivery Controllers.
  3. Highlight the deployment and click Edit.
  4. Change the Transport type to HTTPS.
  5. Make sure the Delivery Controller servers are entered using their FQDNs. These FQDNs must match the certificates installed on those servers.
  6. Click OK twice.

Base URL – Change

The StoreFront Base URL should point to a URL with a FQDN that resolves to a load balancing VIP that load balances the StoreFront servers. Receiver uses this Base URL to connect to StoreFront. If remote, Receiver will first connect to NetScaler Gateway and then use Gateway to proxy a connection to the Base URL.
If you are not following the Single FQDN procedure then the FQDN used for load balancing of StoreFront (Base URL) must be different than the FQDN used for NetScaler Gateway.
The StoreFront Base URL must be https. Receivers will not accept clear-text http URLs. This is true even for remote connections that are proxied through NetScaler Gateway.
  1. Configure load balancing of the StoreFront servers, including SSL certificate.
  2. In the Citrix StoreFront console, right-click Server Group and click Change Base URL.
  3. Enter the new Base URL in https://citrix.corp.com format. This must be https. Receivers will not accept http URLs.
  4. If the Base URL is https but you don’t have certificates installed on your StoreFront servers (aka SSL Offload) then you’ll need to run the following commands on the StoreFront servers. See No More Editing of Hosts File at Citrix Blog Post What’s New in StoreFront 3.0.
    & "C:\Program Files\Citrix\Receiver StoreFront\Scripts\ImportModules.ps1"

    Set-DSLoopback -SiteId 1 -VirtualPath /Citrix/StoreWeb -Loopback OnUsingHttp

Authentication Configuration

If StoreFront is not in the same domain (or trusted domain) as the users, then you can configure StoreFront 3.0 to push authentication to the Delivery Controllers. See XML service-based authentication at docs.citrix.com. Note: StoreFront must still be a member of domain but the particular domain doesn’t matter.
  1. In the Citrix StoreFront console, on the left, right-click Authentication and clickAdd/Remove Methods.
  2. Check the boxes next to Domain pass-through and Pass-through from NetScaler Gateway. Click OK.
  3. If you intend to enable pass-through authentication from Receiver Self-Service or from Receiver for Web, run the command
    Set-BrokerSite -TrustRequestsSentToTheXmlServicePort $True from a Windows PowerShell command prompt on a Controller.
    In XenApp 6.5, this is a Citrix Policy > Computer > Trust XML Requests.
  4. With User name and password highlighted in the middle, click Configure Trusted Domains on the bottom-right.
  5. Select Trusted domains only, click Add, and enter the domain names (NetBIOS and DNS). The DNS suffix is needed if doing userPrincipalName authentication.
  6. Select one of the domains as the default.
  7. If desired, check the box next to Show domains list in logon page. Click OK.
  8. With User name and password highlighted in the middle, click Manage Password Optionsin the bottom right.
  9. Make your selection and click OK.
  10. From Feng Huang at discussions.citrix.com: you can change the password expiration warning period by editing /Citrix/Authentication/web.config. Set showPasswordExpiryWarning to Custom and set passwordExpiryWarningPeriod to your desired number of days.
  11. Be careful with password changes. Any time somebody changes their password through StoreFront, a profile will be created for that user on the StoreFront server. Use a tool likedelprof2.exe to periodically delete these local profiles.

Citrix Online Integration

  1. StoreFront might be configured to add the Citrix Online icons to Receiver. To remove them, on the left click Stores and on the right click Integrate with Citrix Online.
  2. Uncheck all three boxes and click OK.

Receiver for HTML5 – Enable

By default, Receiver for HTML5 is not enabled.
  1. In the StoreFront console, on the left, click Receiver for Web.
  2. On the bottom right, click Deploy Citrix Receiver.
  3. Change the option to Use Receiver for HTML5 if local install fails and then click OK.
  4. Install App Switcher and Citrix PDF Printer on the VDAs.
  5. StoreFront can be configured to launch HTML5 applications in the same Receiver for Web tab instead of creating a new tab. See Configure Citrix Receiver for HTML5 use of browser tabs at docs.citrix.com for more information.

Receiver for Web Timeout

  1. On the left, click Receiver for Web.
  2. On the right, click Set Session Timeout
  3. Set the timeout as desired and click OK.
  4. The session timeout in StoreFront 3.0 is not being reset correctly when a user launches an application. See Michael Bednarek’s code at discussions.citrix.com that fixes the problem.
  5. If you are using a NetScaler, you will need to change the Global Session Timeout located at NetScaler Gateway > Global Settings > Change Global Settings > Client Experience > Session Time-out (mins).

Receiver for Web Pass-through Authentication

If you enabled Pass-through auth in the Authentication node it does not enable it from Receiver for Web. If you enable it in Receiver for Web, additional configuration is required on the Receiver side to fully enable pass-through auth.
  1. On the left, click Receiver for Web
  2. On the right, click Choose Authentication Methods.
  3. If desired, check the box next to Domain pass-through. Click OK.
  4. If the StoreFront URL is in the browser’s Local Intranet zone then you’ll see a prompt to automatically Log On. This only appears once.
  5. If you try to launch an icon it will ask you to login to Windows. To fix this, you must alsoenable pass-through authentication on the client side (Receiver).

Unified Receiver Experience

If you did a clean install of StoreFront 3.0 or newer then the newer Receiver UI will already be enabled. If you upgraded from an older StoreFront then you can disable the Classic UI to enable the newer UI.
  1. On the left, click Receiver for Web.
  2. On the right, click Disable Classic Receiver Experience.
  3. Click Disable.
  4. On the left, click Stores. On the right, click Set Unified Experience as Default.
  5. Check the box next to Set the unified Receiver experience as the default for this storeand click OK.

Customize Receiver Appearance

If the Unified Receiver appearance is enabled, you can go to Receiver for Web > Customize Receiver Appearance to change logos and colors. Additional customization can be performed using the SDK.
These Featured App Groups are displayed at the top of the Apps > All page.
By default, Featured App Groups are displayed with continual horizontal scrolling. This is OK if you have several Featured App Groups but doesn’t look right if you only have one Featured App Group.
Michael Bednarek has posted some code at Citrix Discussions to disable the continuous horizontal scrolling. Also see CTX202415 StoreFront Featured Apps Group Appears More Than Once.  ðŸ’¡
Additional StoreFront and Receiver customizations are available through the StoreFront APIs.

Default Tab

  1. By default, when a user logs in to StoreFront, the Favorites tab is selected. Users can go to other tabs to add icons to the list of Favorites.



  2. You can change the default tab by editingC:\inetpub\wwwroot\Citrix\StoreWeb\web.config in an elevated text editor.
  3. Search for defaultView or scroll to line 61. Change the defaultView to apps or desktops, or leave it set to the default of auto. Auto will select a tab in the following priority order depending on which tabs (views) are enabled: Favorites > Apps > Desktops.
  4. If you change it to default to the Apps view, then you might also want to default to theCategories view instead of the All view.
  5. You can do this by adding the following code toC:\Inetpub\wwwroot\Citrix\StoreWeb\custom\script.js. More details atdiscussions.citrix.com.
    CTXS.Extensions.afterDisplayHomeScreen = function (callback) {
         CTXS.ExtensionAPI.navigateToFolder('/');
    };

  6. Then when you login to StoreFront you’ll see Apps > Categories as the default view. This works in Receiver too.
  7. To completely remove the Favorites tab, in the StoreFront Console, go to Stores > Disable User Subscriptions.
  8. When publishing applications in Studio, specify a Category so the applications are organized into folders.

Propagate Changes

Any time you make a change on one StoreFront server, you must propagate the changes to the other StoreFront server.
  1. In the StoreFront console, on the left, right-click Server Group and click Propagate Changes.
  2. You might see a message saying that you made changes on the wrong server.
  3. Click OK when asked to propagate changes.
  4. Click OK when done.

IIS Default Web Page

Citrix Knowledgebase article – How to Make Storefront the Default Page within the IIS Site –http://support.citrix.com/article/CTX133903. To make a Storefront Web site the default page within the IIS site, complete the following procedure:
  1. Open Notepad and paste the following text:
    <script type="text/javascript">
    <!--
    location="/Citrix/StoreWeb";
    // -->
    </script>
    Note: Replace /Citrix/StoreWeb to the correct path to your Store’s Web site, if required. You can also put https://StoreFrontFQDN in the location field.
  2. Select File > Save As and browse to the IIS folder, by default the C:\inetpub\wwwroot is the IIS folder.
  3. Select the Save as type to All types.
  4. Type a file name with an html extension, and select Save.
  5. Open IIS Manager.
  6. Select the SERVERNAME node (top-level) and double-click Default Document, as shown in the following screen shot:
  7. Select Add…,
  8. And enter the file name of the .html file provided in Step 4.
  9. Ensure the .html file is located at the top of the list, as shown in the following screen shot:
  10. Repeat these steps on every StoreFront server.

Upgrade Receiver for HTML5 to 1.8

StoreFront 3.0.1 comes with HTML5 for 1.8 so there’s no need to upgrade. To confirm, in the Console go to Receiver for Web and look on the bottom for the Receiver for HTML5 version.
  1. You can’t upgrade HTML5 Receiver unless it’s first enabled in the StoreFront Console by going to Receiver for Web > Deploy Citrix Receiver.
  2. On the StoreFront server, go to the downloaded Receiver for HTML5 1.8(CitrixReceiverHTML5_1.8) and run CitrixHTML5Client-x64.exe.
  3. It installs automatically.
  4. In the StoreFront Console, if you click Receiver for Web on the left, in the middle pane the Receiver for HTML5 version should be 1.8.

Deploy Citrix Receiver from StoreFront

If you performed a standalone install of StoreFront, then it is configured to tell users to pull Receivers from Citrix’s website. Follow this section to configure StoreFront to download Receivers directly from the StoreFront server.
Or if you installed StoreFront 2.6 using the XenApp/XenDesktop 7.6 autoselect.exe and later upgraded it to StoreFront 3.0.1, then StoreFront will probably have local Receiver clients that need to be upgraded. Both procedures are covered in this section.
  1. Go to C:\Program Files\Citrix\Receiver StoreFront\Receiver Clients\. Create a Windowsfolder if it doesn’t exist.
  2. In the Windows folder, paste Receiver 4.3.100 for Windows, overwriting the existing file if one exists. Rename the file the CitrixReceiver.exe if it isn’t already. Do this on both StoreFront servers.
  3. Go back up to the Receiver Clients folder and create a Mac folder if one doesn’t exist.
  4. Copy Receiver for Mac 12.1 to C:\Program Files\Citrix\Receiver StoreFront\Receiver Clients\Mac. Overwrite the existing file if one exists. Rename the file toCitrixReceiver.dmg.  ðŸ’¡
  5. Go to C:\inetpub\wwwroot\Citrix\StoreWeb and edit the file Web.config. If UAC is enabled you’ll need to run your text editor elevated.
  6. Scroll down to the pluginAssistant section (line 52). If desired, change upgradeAtLogin totrue. This will enable StoreFront to check the installed version of Receiver and offer to upgrade.
  7. If the win32 and macOS paths point to downloadplugins.citrix.com, you can change the paths to a local folder so that the Receiver is downloaded directly from StoreFront instead of from Citrix.com. Simply change http://downloadplugins.citrix.com to clients. Also, change the file names so they match the ones on your StoreFront servers.
  8. Close and save the file.
  9. Propagate Changes to the other StoreFront servers.
  10. When users connect to Receiver for Web, they will be prompted to install or upgrade. Note: this only applies to Receiver for Web. Receiver Self-Service will not receive this prompt.

Auto-Favorite

To force a published application to be favorited (subscribed), use one of the following keywords in the published application description:
  • KEYWORDS: Auto = the application is automatically subscribed. But users can remove the favorite.
  • KEYWORDS: Mandatory = the application is automatically subscribed and users cannot remove the favorite.
With Mandatory applications there is no option to remove the application from Favorites.

Related Topics
